Introduction

The foundation of every reliable solar mounting structure begins with selecting the right structural components. Among these, the Solar Base Plate with 41×41 C Channel plays a vital role in providing stability, strength, and long-term durability. Whether the project involves a residential rooftop installation, a commercial solar plant, or a large-scale industrial solar system, the quality and design of the base plate directly influence the overall performance of the structure.

A Solar Base Plate with 41×41 C Channel is specially designed to create a strong connection between the supporting structure and the concrete foundation. The 41×41 C Channel acts as the vertical structural member, while the base plate evenly transfers the load to the foundation. This combination improves structural rigidity, simplifies installation, and ensures that the mounting system remains stable even under varying environmental conditions.

Today, 41×41 C Channels are among the most widely used profiles in the solar industry because they offer an ideal balance between strength, weight, and installation flexibility. Their standardized dimensions make them compatible with a wide range of solar mounting accessories, allowing EPC contractors, fabricators, and installers to build efficient and reliable support structures for different types of solar projects.

However, selecting the right Solar Base Plate with 41×41 C Channel involves much more than choosing a standard size. Factors such as base plate dimensions, steel thickness, welding quality, punching accuracy, corrosion protection, and project-specific load requirements all contribute to the overall strength and service life of the assembly. Ignoring these technical aspects can lead to installation challenges, reduced structural performance, and increased maintenance costs over time.

Modern solar projects also demand components that can withstand continuous exposure to sunlight, rain, humidity, and changing weather conditions. For this reason, many buyers prefer Hot-Dip Galvanized (HDG) Solar Base Plates or other corrosion-resistant finishes that provide long-term protection without compromising structural integrity. Combined with precise manufacturing techniques such as CNC punching and MIG welding, these products help deliver reliable performance across residential, commercial, and utility-scale installations.

At SRE Manufacturer, a brand of Shri Radha Enterprises, we understand that every solar project has unique structural requirements. That's why we manufacture Solar Base Plates with 41×41 C Channels in multiple sizes, thicknesses, and finish options to match different project specifications. Our focus is on delivering consistent quality, dimensional accuracy, strong welded joints, and dependable products that meet the expectations of EPC companies, contractors, distributors, and industrial buyers.

In this comprehensive guide, you'll learn everything you need to know about Solar Base Plates with 41×41 C Channels, including their technical specifications, common applications, material options, manufacturing process, key advantages, buying considerations, and the factors that help you choose the right solution for your solar mounting structure.

If you're planning a solar project and looking for a high-quality Solar Base Plate, explore our complete product page to compare available sizes, specifications, and custom manufacturing options before selecting the right solution for your project.

For the latest information on solar infrastructure, installation standards, and renewable energy initiatives in India, you can also refer to the official Ministry of New and Renewable Energy (MNRE) website.

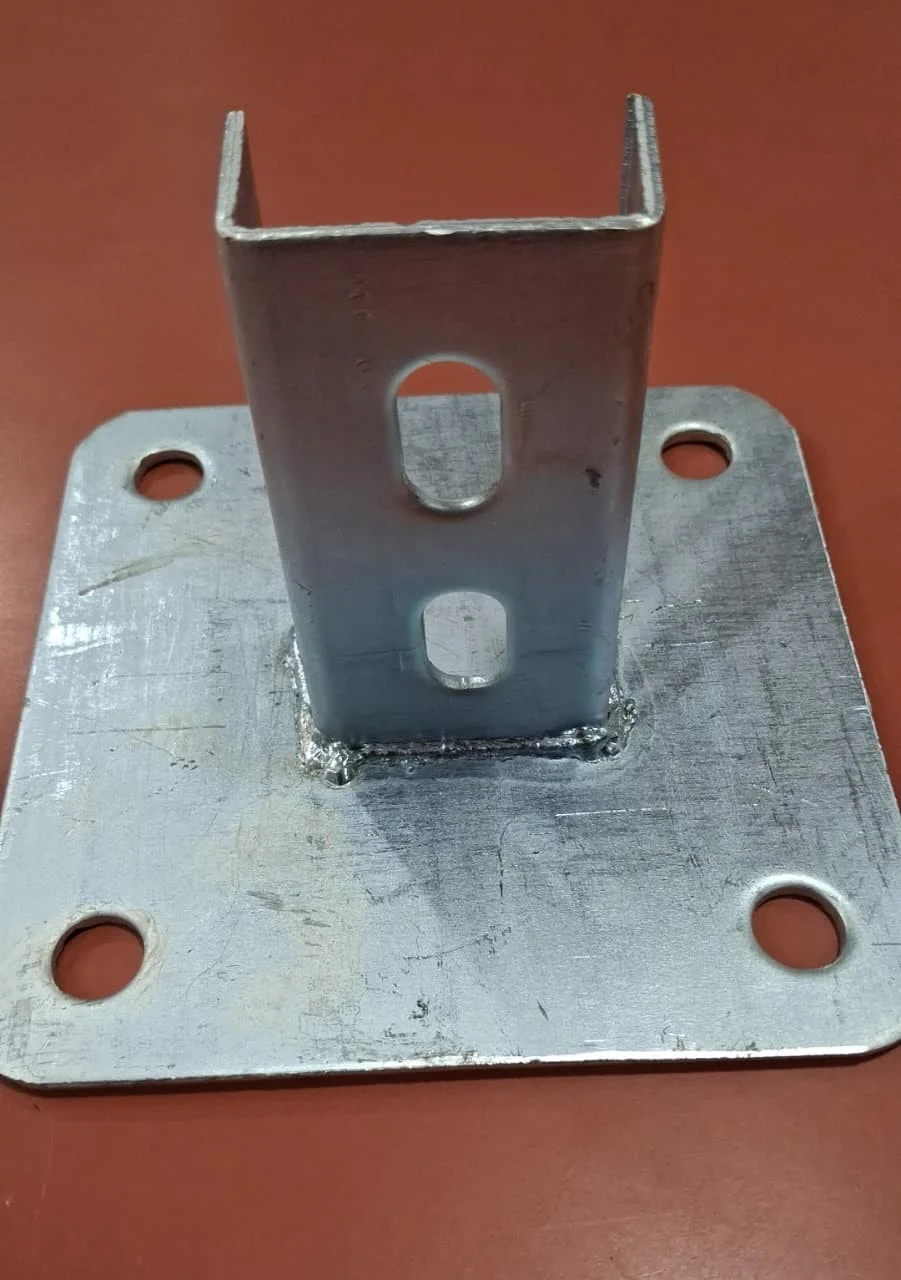

What is a Solar Base Plate with 41×41 C Channel?

A Solar Base Plate with 41×41 C Channel is a structural component used in solar mounting systems to provide a strong and stable connection between the support structure and its foundation. It consists of a precision-manufactured Mild Steel (MS) Base Plate welded with a 41×41 C Channel (Strut Channel), creating a rigid assembly capable of supporting solar module structures under different load conditions.

The base plate distributes the structural load evenly to the concrete foundation, while the 41×41 C Channel serves as the vertical support for mounting rails, brackets, and other structural members. This combination ensures that the entire solar mounting structure remains aligned, secure, and capable of withstanding environmental forces such as wind pressure and continuous operational loads.

The 41×41 C Channel is one of the most widely used channel profiles in the solar industry due to its balanced strength, standard dimensions, and compatibility with various solar mounting accessories. Its design allows for easy integration with clamps, brackets, spring nuts, and bolts, making installation faster and reducing on-site fabrication work.

Depending on the project requirements, Solar Base Plates with 41×41 C Channel can be manufactured in different base plate sizes, channel lengths, plate thicknesses, and surface finishes. This flexibility makes them suitable for residential rooftops, commercial buildings, industrial facilities, and large ground-mounted solar projects.

Manufacturing quality also plays a significant role in the performance of the assembly. Precision punching, accurate dimensional tolerances, strong MIG welding, and proper surface treatment contribute to improved durability and long-term structural reliability. Looking for a Solar Base Plate manufactured with precision punching, strong MIG welding, and high-quality galvanized finishing? Explore our detailed product page to view available sizes, specifications, and customization options for different solar mounting applications.

Why is the 41×41 C Channel Widely Used in Solar Mounting Structures?

The 41×41 C Channel has become one of the most preferred structural profiles in modern solar mounting systems because it offers an excellent balance between strength, versatility, and ease of installation. Its standardized dimensions make it compatible with a wide range of mounting accessories, allowing engineers and installers to build strong, stable, and efficient support structures for different types of solar projects.

One of the biggest advantages of the 41×41 C Channel is its ability to handle structural loads while keeping the overall framework lightweight. When welded to a Solar Base Plate, it creates a rigid assembly that helps distribute loads evenly and improves the stability of the complete solar mounting structure.

Another reason for its popularity is installation efficiency. The profile is designed to work seamlessly with spring nuts, bolts, clamps, and other mounting accessories, reducing fabrication work at the project site. This not only saves installation time but also helps maintain better alignment and accuracy throughout the structure.

For outdoor solar projects, durability is equally important. When combined with a Hot-Dip Galvanized (HDG) Solar Base Plate, the 41×41 C Channel offers excellent resistance to corrosion, making it suitable for long-term exposure to sunlight, rain, humidity, and changing weather conditions.

Because of these advantages, Solar Base Plates with 41×41 C Channels are widely used in residential rooftop systems, commercial buildings, industrial facilities, solar carports, and utility-scale ground-mounted solar projects where structural reliability and long service life are essential.

📊 Key Benefits of Using a 41×41 C Channel

FeatureBenefitStandard 41×41 ProfileCompatible with most solar mounting accessoriesHigh Structural StrengthProvides excellent support for solar structuresEasy InstallationReduces on-site fabrication and installation timeMIG Welded AssemblyEnsures strong and durable structural jointsHot-Dip Galvanized FinishProtects against rust and outdoor corrosionCustom ManufacturingAvailable in different lengths, thicknesses, and configurationsTechnical Specifications of Solar Base Plate with 41×41 C Channel

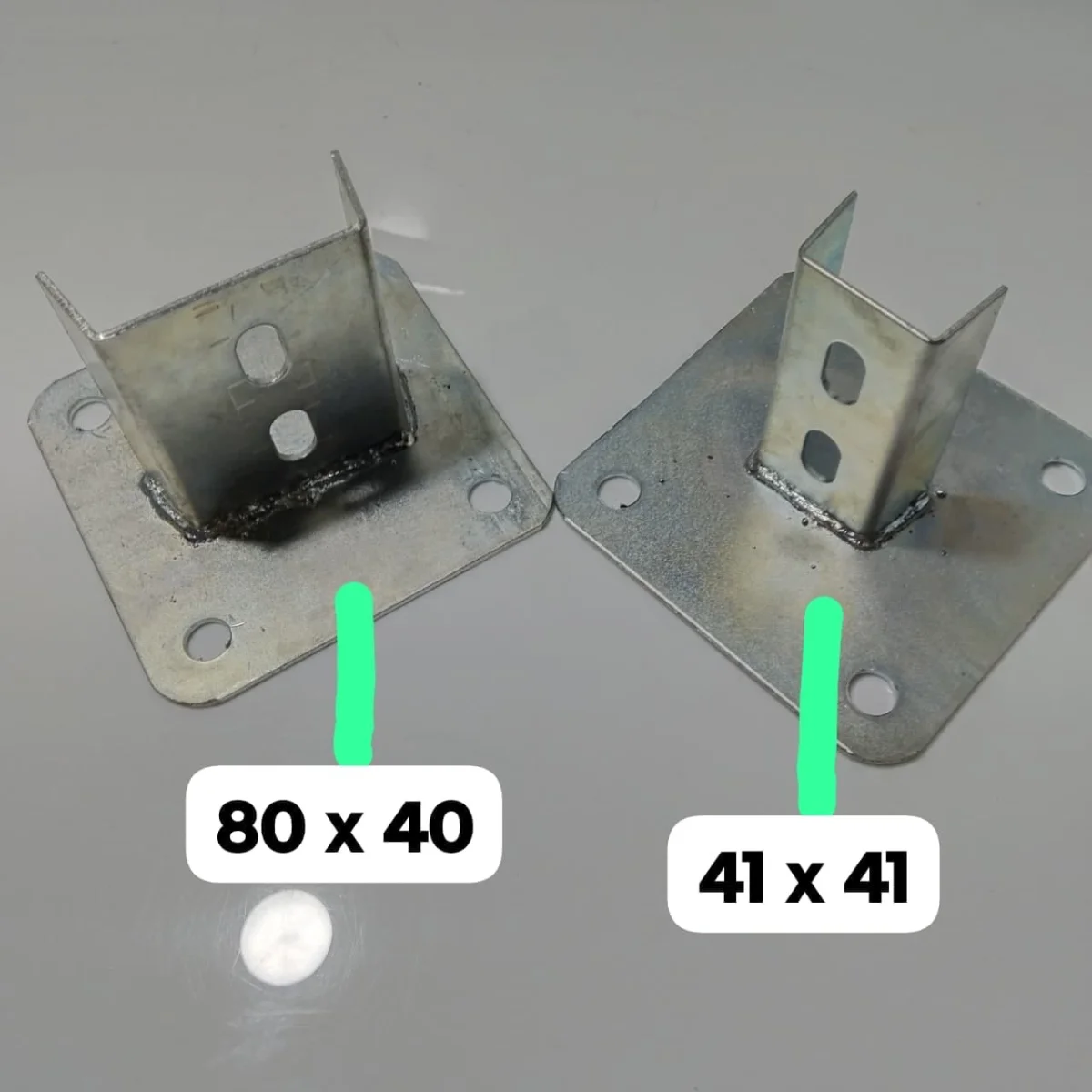

The technical specifications of a Solar Base Plate with 41×41 C Channel play a crucial role in determining the overall strength, durability, and performance of a solar mounting structure. Every project has different structural requirements, which is why factors such as base plate size, channel thickness, material grade, welding quality, and surface finish should always be selected according to engineering drawings and project specifications.

At SRE Manufacturer, every Solar Base Plate with 41×41 C Channel is manufactured using precision fabrication techniques to ensure dimensional accuracy, reliable structural support, and long service life. Each component is inspected during production so that it meets the required quality standards before dispatch.

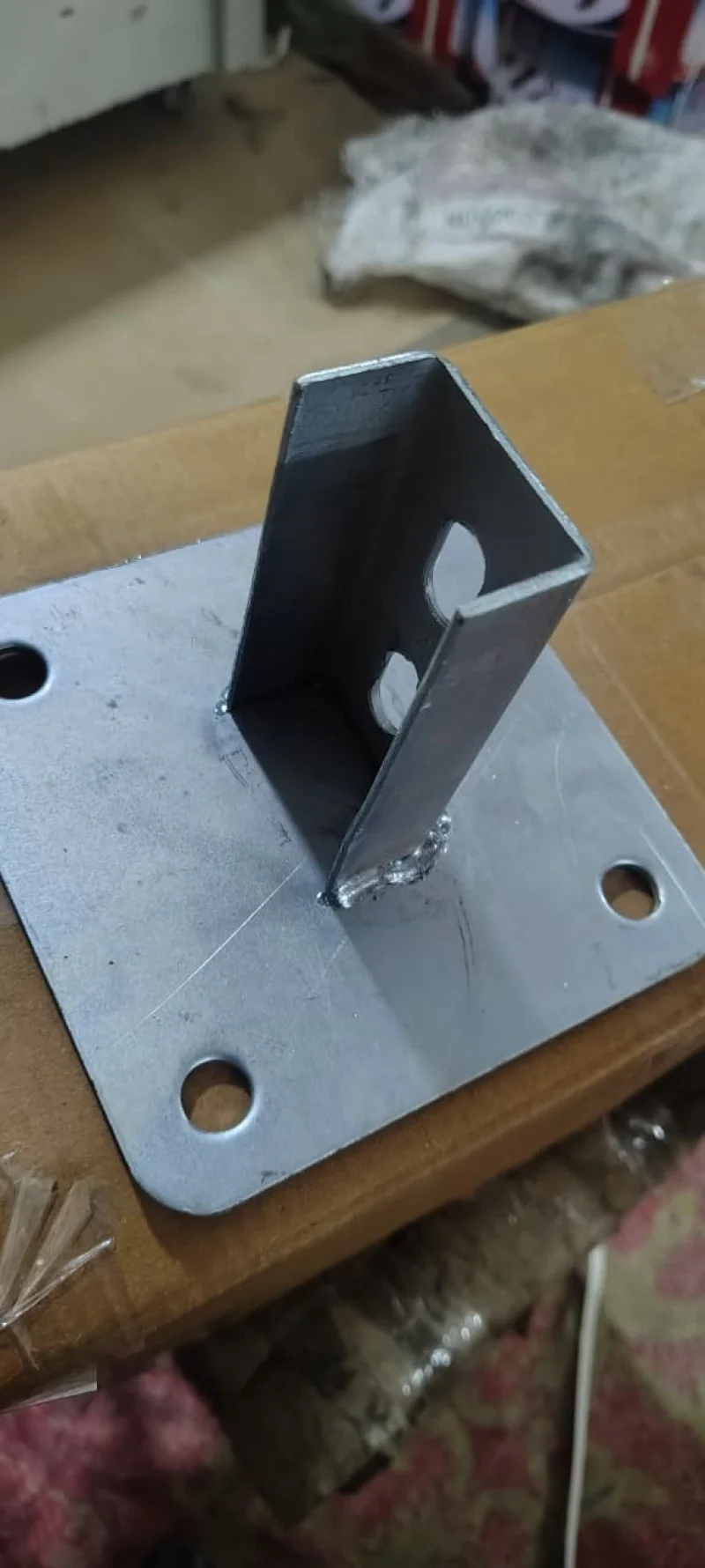

The 41×41 C Channel is welded to the base plate using a controlled MIG welding process, creating a strong and rigid connection that helps distribute structural loads efficiently. Accurate hole punching also ensures proper alignment during installation, reducing on-site modifications and saving installation time.

Depending on customer requirements, these assemblies can be manufactured with different base plate sizes, plate thicknesses, channel lengths, and surface finishes. Custom manufacturing is also available for EPC companies, fabricators, and industrial buyers who require project-specific dimensions

Why Technical Specifications Matter

Many buyers compare products only by dimensions, but technical specifications provide a much clearer picture of the product's actual quality and performance. Choosing the correct combination of material, thickness, hole pattern, and welding quality helps improve installation accuracy and ensures that the solar mounting structure performs reliably over the long term.

For commercial and industrial solar projects, following project-specific specifications also minimizes installation delays, reduces material wastage, and improves the overall safety of the structure.Available Solar Base Plate Sizes with 41×41 C Channel

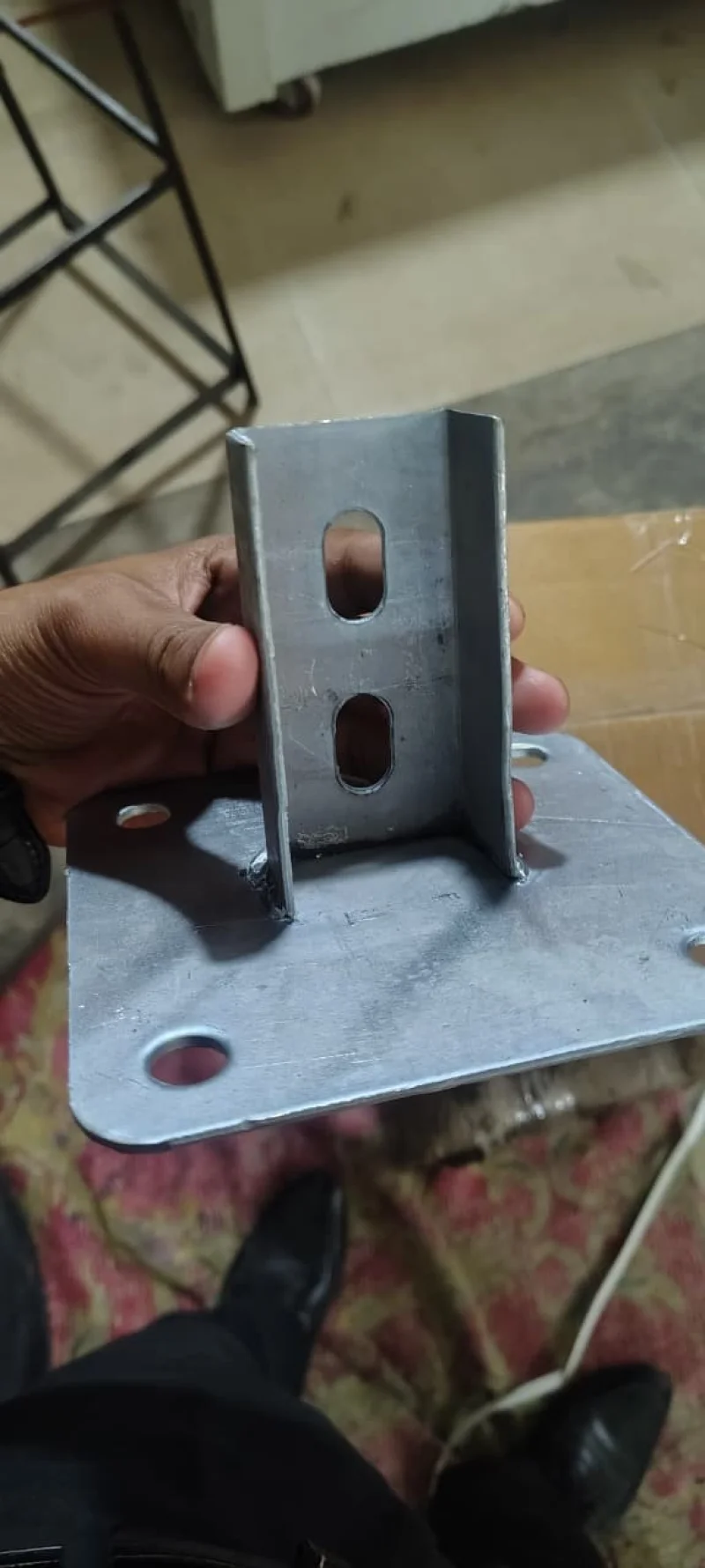

Selecting the appropriate Solar Base Plate size is essential for ensuring proper load distribution and structural stability. Although the 41×41 C Channel remains the same profile, the size of the base plate varies depending on the project's foundation design, support structure, and expected load conditions.

At SRE Manufacturer, Solar Base Plates with 41×41 C Channel are available in multiple standard sizes and can also be manufactured in custom dimensions according to engineering drawings. Choosing the correct size not only improves installation accuracy but also enhances the overall performance and lifespan of the solar mounting structure.

100 × 100 mm Solar Base Plate with 41×41 C Channel

The 100 × 100 mm Solar Base Plate is commonly used in lightweight solar mounting systems and residential rooftop projects. It provides adequate support for smaller structures while keeping the installation simple and cost-effective.

Typical Applications

• Residential rooftop solar systems
• Small-capacity solar installations
• Lightweight support structures
• Compact solar mounting assemblies

Key Benefits

• Easy to install
• Cost-effective solution
• Suitable for light structural loads
• Compatible with standard 41×41 C Channel assemblies

125 × 125 mm Solar Base Plate with 41×41 C Channel

The 125 × 125 mm Solar Base Plate is widely preferred for commercial solar projects where additional stability and improved load distribution are required. It offers a balanced combination of strength and installation efficiency.

Typical Applications

• Commercial rooftop solar projects
• Medium-scale solar installations
• Industrial sheds
• Standard solar mounting structures

Key Benefits

• Better structural support
• Improved foundation stability
• Higher load-bearing capacity
• Reliable long-term performance

150 × 150 mm Solar Base Plate with 41×41 C Channel

The 150 × 150 mm Solar Base Plate is designed for industrial and heavy-duty solar applications. Its larger surface area helps distribute structural loads more effectively, making it suitable for projects exposed to higher wind loads or demanding environmental conditions.

Typical Applications

• Industrial solar plants
• Heavy-duty rooftop systems
• Large support structures
• Infrastructure projects

Key Benefits

• Enhanced structural rigidity
• Better load distribution
• Increased durability
• Suitable for heavy-duty applications

200 × 200 mm Solar Base Plate with 41×41 C Channel

The 200 × 200 mm Solar Base Plate is typically selected for utility-scale solar farms and large infrastructure projects where maximum structural stability is required. Its larger dimensions provide excellent support for high-load mounting structures.

Typical Applications

• Utility-scale solar farms
• Ground-mounted solar projects
• High wind-load installations
• Large industrial facilities

Key Benefits

• Maximum structural strength
• Excellent foundation support
• Reliable performance in demanding environments
• Long service life

Material & Surface Finish Options for Solar Base Plate with 41×41 C Channel

The performance and lifespan of a Solar Base Plate with 41×41 C Channel largely depend on the quality of the material used and the type of surface finish applied. Since solar mounting structures remain exposed to harsh environmental conditions throughout their service life, selecting the right combination of steel grade and protective coating is essential for ensuring long-term durability and structural reliability.

At SRE Manufacturer, every Solar Base Plate with 41×41 C Channel is manufactured using premium-quality Mild Steel (MS) that offers excellent strength, weldability, and dimensional stability. Depending on project requirements, customers can also choose from different surface finish options to improve corrosion resistance and increase the overall service life of the product.

Mild Steel (MS) – The Preferred Material

Mild Steel (MS) is one of the most commonly used materials for manufacturing Solar Base Plates because it provides an ideal balance between mechanical strength, fabrication flexibility, and cost-effectiveness.

Its excellent welding properties allow the 41×41 C Channel to be securely joined with the base plate, creating a rigid assembly capable of supporting solar mounting structures under varying load conditions.

Key Advantages of Mild Steel

• High structural strength
• Excellent weldability
• Good machining and fabrication properties
• Suitable for custom manufacturing
• Reliable performance for commercial and industrial applications

Hot-Dip Galvanized (HDG) Finish

For outdoor installations, Hot-Dip Galvanized (HDG) is one of the most preferred surface finishes because it provides superior protection against corrosion. During the galvanizing process, the steel component is coated with a protective layer of zinc, helping it withstand rain, humidity, dust, and long-term exposure to changing weather conditions.

This protective coating significantly reduces the chances of rust formation and minimizes maintenance requirements, making HDG Solar Base Plates an ideal choice for rooftop solar systems, industrial facilities, and utility-scale solar projects.

Other Surface Finish Options

Apart from Hot-Dip Galvanized (HDG), Solar Base Plates with 41×41 C Channel can also be supplied with different finishes depending on project requirements.

Common options include:

• Raw Mild Steel Finish
• Red Oxide Primer
• Zinc Coated Finish
• Hot-Dip Galvanized (HDG)

The appropriate finish should always be selected based on the installation environment, expected service life, and corrosion resistance requirements.

📊 Material & Finish Comparison

Material / FinishFeaturesRecommended ApplicationsMild Steel (MS)High strength, excellent weldabilityGeneral fabrication & solar structuresRaw FinishEconomical, suitable for further processingIndoor or factory fabricationRed Oxide PrimerBasic corrosion protectionTemporary storage & indoor applicationsZinc CoatedImproved corrosion resistanceStandard outdoor installationsHot-Dip Galvanized (HDG)Maximum rust protection & long service lifeCommercial, industrial & utility-scale solar projects

Why Choosing the Right Finish Matters

Selecting the correct surface finish is just as important as choosing the right Solar Base Plate size. A properly protected component can significantly improve the lifespan of the entire solar mounting structure while reducing maintenance and replacement costs over time.

For projects located in coastal regions, humid environments, or heavy rainfall zones, Hot-Dip Galvanized (HDG) Solar Base Plates are generally recommended due to their superior corrosion resistance and long-term performance.

Manufacturing Process of Solar Base Plate with 41×41 C Channel

Manufacturing a high-quality Solar Base Plate with 41×41 C Channel requires precision engineering, skilled fabrication, and strict quality control at every stage. Every process, from raw material selection to the final inspection, directly affects the strength, dimensional accuracy, and durability of the finished product.

At SRE Manufacturer, we follow a systematic manufacturing process to ensure every Solar Base Plate with 41×41 C Channel meets the required specifications for residential, commercial, and industrial solar mounting projects.

Manufacturing Steps

1. Selection of premium Mild Steel (MS) raw material
2. CNC laser cutting or precision shearing
3. Accurate hole punching as per engineering drawings
4. Preparation and alignment of the 41×41 C Channel
5. Heavy-duty MIG Welding
6. Weld cleaning and grinding
7. Surface finishing (Raw / HDG / Zinc Coated)
8. Dimensional inspection
9. Final quality check
10. Packaging and dispatch

A controlled manufacturing process helps ensure consistent quality, easier installation, and reliable long-term performance.

Applications of Solar Base Plate with 41×41 C Channel

A Solar Base Plate with 41×41 C Channel is widely used in different types of solar mounting structures due to its versatility and structural strength.

Common Applications

• Residential Rooftop Solar Systems
• Commercial Solar Installations
• Industrial Solar Projects
• Ground Mounted Solar Structures
• Solar Carports
• Utility Scale Solar Farms
• Solar Panel Mounting Structures
• EPC Solar Projects

Because of its standardized profile, the 41×41 C Channel integrates easily with clamps, spring nuts, brackets, and other mounting accessories used in modern solar installations.

Advantages of Solar Base Plate with 41×41 C Channel

Choosing a premium-quality Solar Base Plate with 41×41 C Channel offers several advantages that improve both installation efficiency and structural performance.

Key Advantages

• High Structural Strength
• Excellent Load Distribution
• Fast & Easy Installation
• Accurate Hole Positioning
• Precision MIG Welded Construction
• Corrosion Resistant Finish Options
• Available in Multiple Sizes
• Custom Manufacturing Available
• Long Service Life
• Low Maintenance Requirements

These benefits make the product suitable for a wide range of solar mounting applications across different industries.

How to Choose the Right Solar Base Plate with 41×41 C Channel

Before purchasing, buyers should evaluate a few important technical factors instead of selecting a product based only on price.

Buying Checklist

✔ Base Plate Size

✔ Plate Thickness

✔ 41×41 C Channel Thickness

✔ Material Grade

✔ Hole Pattern

✔ Welding Quality

✔ Surface Finish

✔ Dimensional Accuracy

✔ Manufacturing Capability

✔ Bulk Supply Capacity

Choosing the right specifications helps reduce installation issues while improving the lifespan of the complete solar mounting structure.

Why Choose SRE Manufacturer?

SRE Manufacturer, a trusted brand of Shri Radha Enterprises, supplies premium-quality Solar Base Plates with 41×41 C Channel for EPC companies, contractors, distributors, fabricators, and industrial buyers across India.

We Offer

• Premium Quality Manufacturing
• Precision Punching
• Strong MIG Welding
• Multiple Standard Sizes
• Custom Manufacturing
• Bulk Production
• Competitive B2B Pricing
• Fast Delivery
• Reliable Technical Support

Whether you require standard products or customized solutions, our team can manufacture according to your engineering drawings and project specifications.

Frequently Asked Questions (FAQs)

1. What is a Solar Base Plate with 41×41 C Channel?

It is a fabricated assembly consisting of a Solar Base Plate welded with a 41×41 C Channel, used as the foundation support for solar mounting structures.

2. Which material is commonly used?

Most Solar Base Plates are manufactured using premium Mild Steel (MS) because of its excellent strength and weldability.

3. Is Hot-Dip Galvanizing available?

Yes. Hot-Dip Galvanized (HDG) finish is available for improved corrosion resistance in outdoor environments.

4. Can the product be customized?

Yes. Base plate size, thickness, hole pattern, channel length, and surface finish can be customized according to project requirements.

5. Which industries use this product?

Residential rooftop, commercial, industrial, EPC, infrastructure, and utility-scale solar projects.

6. What are the standard base plate sizes?

Common sizes include 100×100 mm, 125×125 mm, 150×150 mm, and 200×200 mm.

7. Why is the 41×41 C Channel widely used?

It offers an excellent combination of structural strength, easy installation, and compatibility with standard solar mounting accessories.

8. Do you supply products in bulk?

Yes. SRE Manufacturer supplies bulk quantities for distributors, contractors, and EPC companies.

Conclusion

A Solar Base Plate with 41×41 C Channel is an essential structural component that provides strength, stability, and long-term durability to solar mounting systems. By selecting the correct base plate size, material grade, welding quality, and surface finish, buyers can improve installation efficiency while ensuring reliable structural performance.

Whether your project involves residential rooftops, commercial buildings, industrial facilities, or utility-scale solar farms, investing in a precision-manufactured Solar Base Plate with 41×41 C Channel helps create a strong foundation for long-lasting solar installations.
