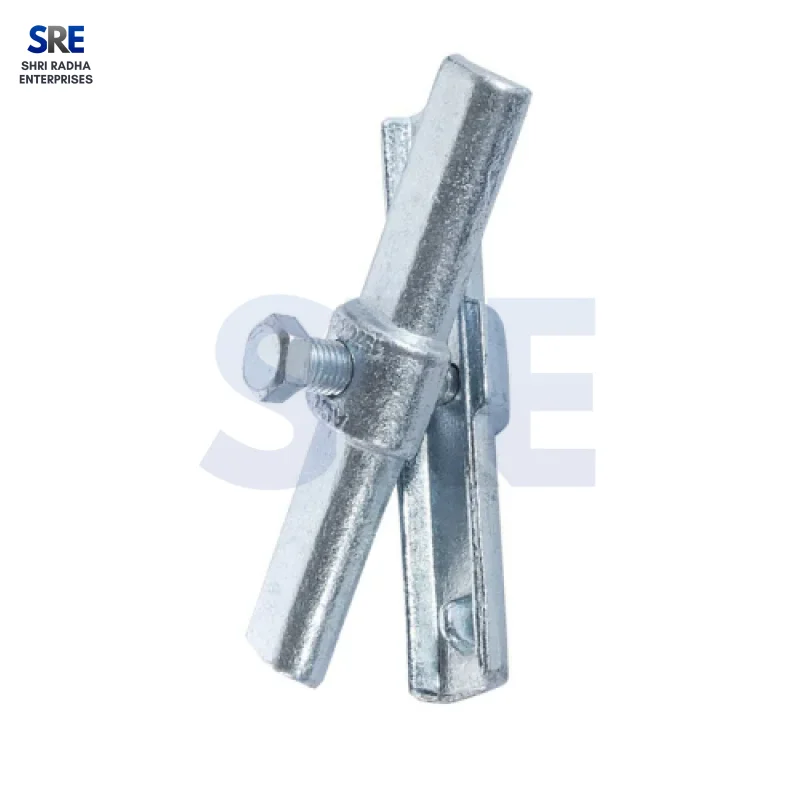

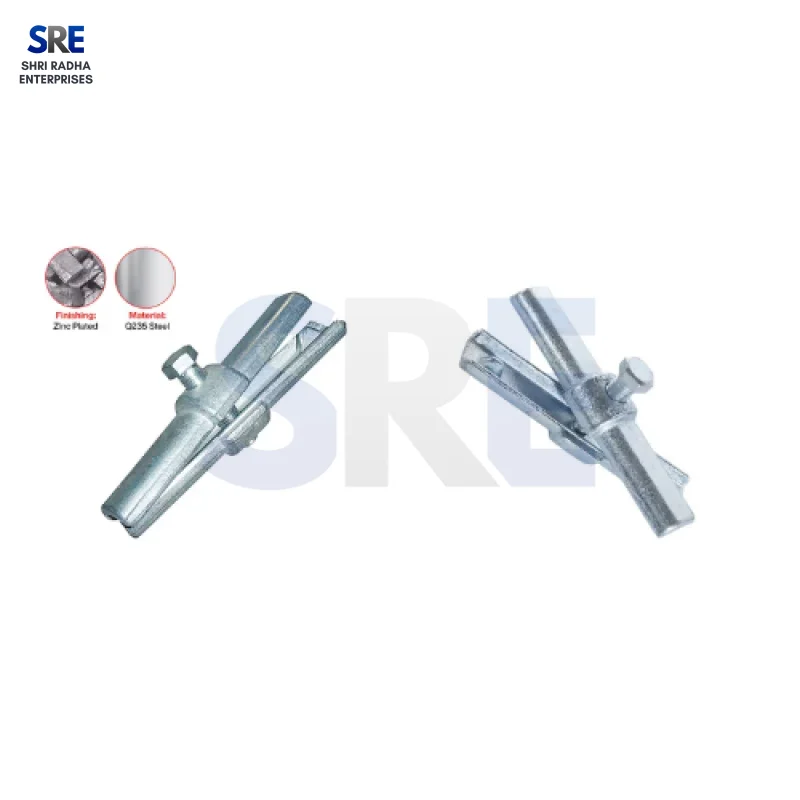

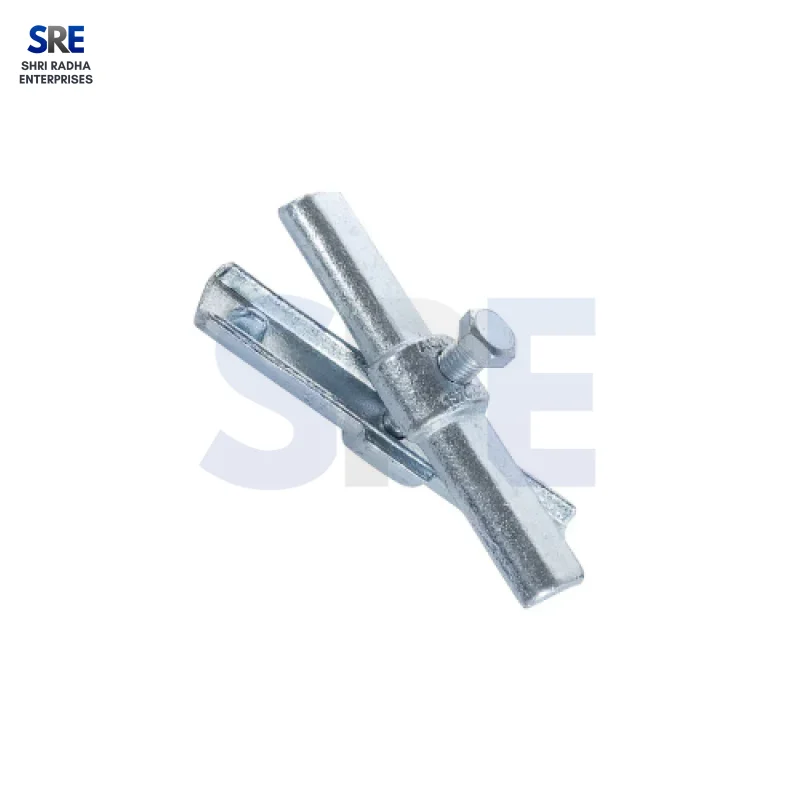

Forged Joint Pin

In commercial tube-and-fitting scaffolding, the maximum height of a tower is often limited by the length of a single steel pipe. To safely reach industrial elevations, contractors must stack vertical standards end-to-end. The forged joint pin serves as the critical internal spine that connects these two tubes. Standard external sleeve couplers are bulky and can interfere with ledger placement; our specialized internal joint pin solves this problem completely by sitting flush inside the tube. By utilizing a high-friction expanding mechanism, this joint pin ensures the upper tube sits perfectly plumb, transferring massive compressive loads seamlessly down to the ground.

Comprehensive Matrix (Engineered for Exact Tube Integration)

End-to-end pipe connections require a joint pin that can withstand massive sheer forces and compressive weight while fitting snugly into the standard pipe gauge. To ensure your vertical framework remains completely rigid, we manufacture this joint pin in precision-calibrated forged weights:

Unmatched Engineering & Structural Advantages:

• Internal Expanding Grip: Engineered to secure heavy loads from the inside out, every SRE joint pin features a split-body design. When the central bolt is torqued, the two halves of the joint pin expand outward, pressing aggressively against the inner walls of the scaffolding tubes for a zero-wobble, high-friction lock.

• Drop-Forged MS Durability: Vertical extensions cannot rely on brittle cast metals. Every joint pin is drop-forged from solid MS (Mild Steel). This high-pressure manufacturing process entirely eliminates the risk of the joint pin snapping or shearing under heavy concrete vibration, high winds, or structural swaying.

• Integrated Centering Collar: To prevent the joint pin from slipping entirely down inside the bottom pipe, every unit is forged with a central flanged collar. This ensures exactly 50% of the joint pin remains exposed to securely receive the top scaffolding tube, guaranteeing a perfectly balanced joint.

• Protective Zinc Plating: Because condensation builds up inside hollow steel pipes, internal rust is a severe hidden danger. Every joint pin undergoes strict electro-galvanization (zinc plating). This protective shield prevents the joint pin mechanism from corroding, ensuring the expanding bolt turns smoothly after years of use.

Step-by-Step Joint Pin Installation Efficiency (Designed for EPCs):

Extending vertical standards at high elevations must be fast and safe. The SRE Forged Joint Pin is engineered for rapid, frictionless deployment. Erection crews simply slide the bottom half of the joint pin into the existing vertical tube until the centering collar rests flush against the rim. They then slide the upper extension tube over the exposed top half of the joint pin. Finally, the worker inserts a standard spanner through the small gap between the tubes and tightens the central bolt, instantly expanding the joint pin and locking the two pipes together rigidly.

📦 Bulk Procurement & Global Export Supply

SRE understands the intense logistical demands of utility-scale contractors and large equipment rental fleets who build towering scaffolding structures. Every heavy-duty MS forged joint pin undergoes rigorous batch testing for internal expansion tolerance, shear strength, and thread slip resistance before being prepared for transit. We offer highly competitive, tier-based wholesale pricing structures for major domestic EPC contractors. For global delivery, your joint pin orders are securely packed in heavy-duty woven bags and strapped onto export-grade steel pallets, guaranteeing zero transit damage directly to your yard.
