Ringlock Scaffolding
Ringlock Vertical
Technical Specifications
- System Compatibility Standard Ringlock Modular Systems
- Material Grade High-Yield Structural Steel
- Surface Treatment Hot-Dip Galvanized
- Node Spacing Rosette welded every 500 mm
- Available Lengths (Metric) 0.50m | 1.00m | 1.50m | 2.00m | 2.50m | 3.00m
- Available Lengths (Imperial) 1.6 Ft | 3.3 Ft | 4.9 Ft | 6.6 Ft | 8.2 Ft | 9.8 Ft
- Weight Range (Metric) 3.0 Kg up to 14.9 Kg
- Rosette Capacity Up to 8 multi-directional connections
- Tube Outer Diameter 48.3 mm
- Origin India
Product Description
In high-stakes industrial scaffolding, the entire weight of the platform, the workforce, and raw materials ultimately transfers down the vertical axis. To fully leverage the multi-directional capabilities of a Ringlock modular design, the vertical standards must deliver uncompromising compressive strength. Acting as the spine of the scaffold, these high-yield steel tubes prevent buckling and structural failure, allowing engineers to build safe, towering access platforms in the most demanding environments.
Precision Configurations for Ultimate Scalability
B2B procurement relies on absolute certainty. Site managers need exact lift heights and weight metrics to calculate logistical constraints and structural load limits. As detailed in the comprehensive specifications from image_ecefc4.png, our Ringlock verticals are manufactured across six precise sizes to ensure perfect site adaptability.
For base leveling, modular adjustments, or confined spaces, we provide the Standard 1 Ring (0.50 Mtr. / 3.0 Kg) and Standard 2 Ring (1.00 Mtr. / 5.4 Kg). For rapid vertical elevation, the Standard 3 Ring (1.50 Mtr. / 7.6 Kg) and Standard 4 Ring (2.00 Mtr. / 10.0 Kg) offer excellent handling-to-height ratios. When erecting massive industrial towers, our heavy-duty Standard 5 Ring (2.50 Mtr. / 13.0 Kg) and maximum-reach Standard 6 Ring (3.00 Mtr. / 14.9 Kg) drastically reduce the number of required connections, accelerating erection times.
Unlocking 8-Way Multi-Directional Integration

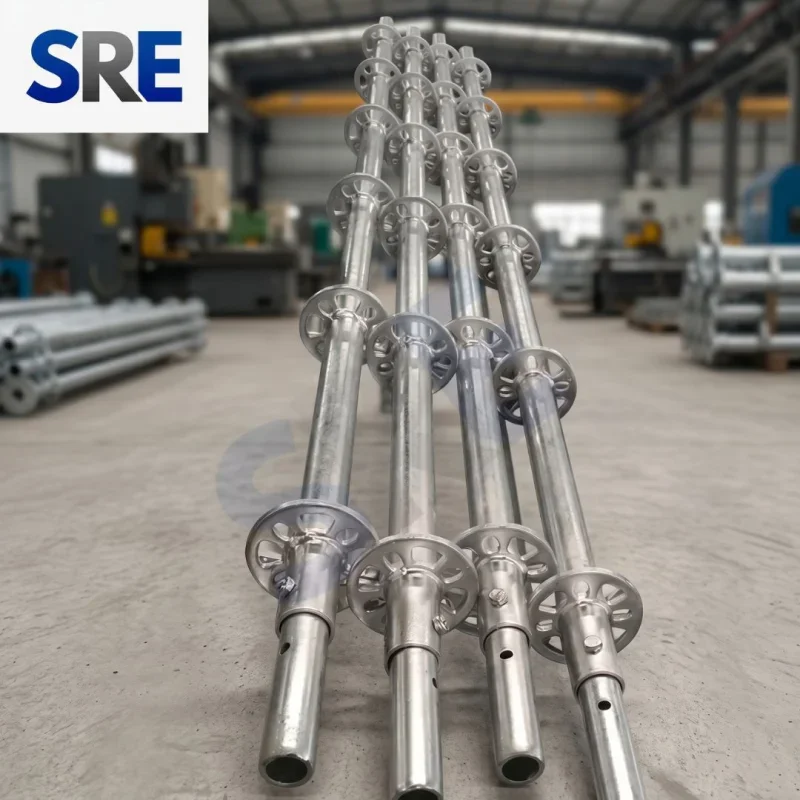

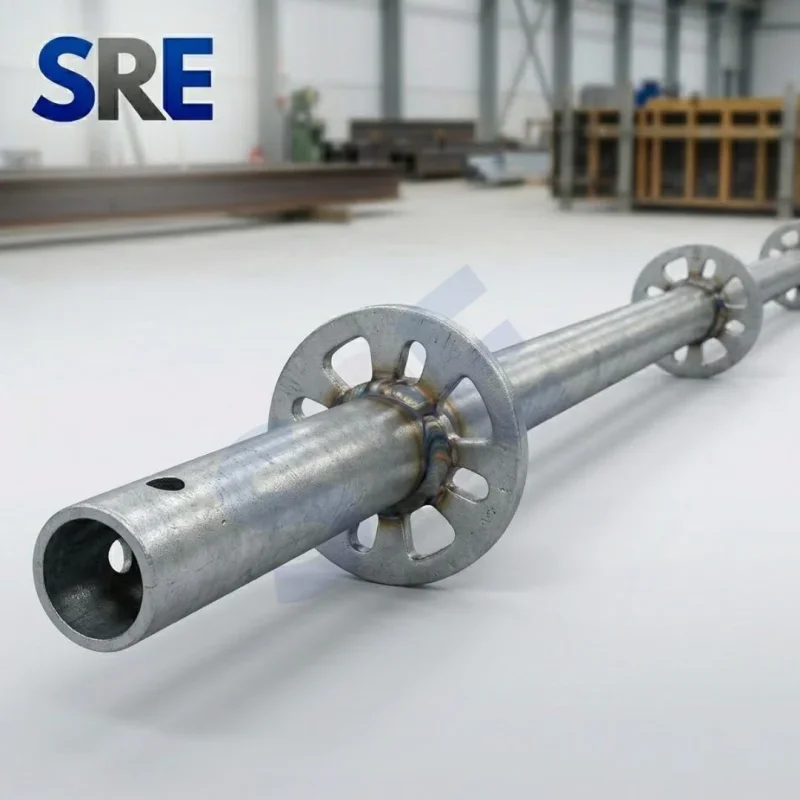

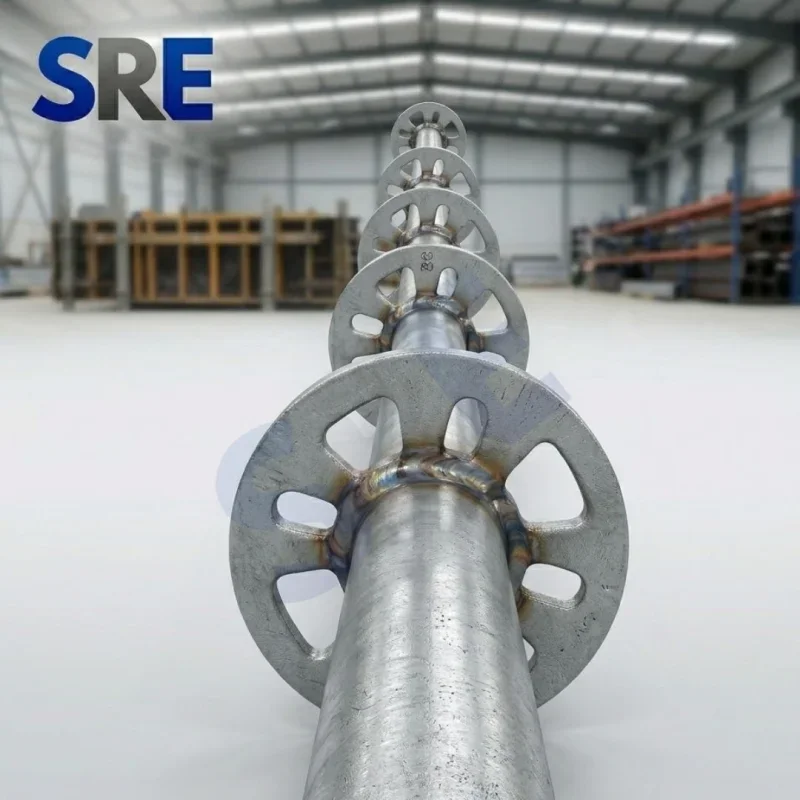

What makes the Ringlock system vastly superior to traditional scaffolding is the central rosette node. Welded at strict 500mm intervals along the vertical standard, each rosette safely accepts up to eight simultaneous connections (four ledgers at right angles, and four diagonal braces). This allows for complex, circular, or highly irregular facade wrapping without specialized couplers. Furthermore, each standard is protected by a thick hot-dip galvanized coating, preventing internal degradation and exterior rust to guarantee decades of reliable deployment.
| Feature | Specification |
| System Compatibility | Standard Ringlock Modular Systems |
| Material Grade | High-Yield Structural Steel (Q345 / Q235) |
| Surface Treatment | Hot-Dip Galvanized |
| Node Spacing | Rosette welded every 500 mm |
| Available Lengths (Metric) | 0.50m | 1.00m | 1.50m | 2.00m | 2.50m | 3.00m |
| Available Lengths (Imperial) | 1.6 Ft | 3.3 Ft | 4.9 Ft | 6.6 Ft | 8.2 Ft | 9.8 Ft |
| Weight Range (Metric) | 3.0 Kg up to 14.9 Kg |
| Rosette Capacity | Up to 8 multi-directional connections |
| Tube Outer Diameter | 48.3 mm |
Application & Additional Information
Serving as the primary vertical load-bearing pillar of any modular build, our heavy-duty Ringlock standard provides the unbreakable foundation your industrial projects demand. Forged from high-yield structural steel with a premium hot-dip galvanized finish, these vertical masts feature precision-welded rosettes spaced exactly every 500mm. Available in six distinct configurations—from the highly adaptable 0.50 Mtr. (1 Ring) base to the towering 3.00 Mtr. (6 Ring) continuous mast—these vertical members maximize the load capacity, scalability, and safety of your entire Ringlock system.
