Ringlock Scaffolding
Ringlock Brace
Technical Specifications
- Material Grade High-Yield Structural Steel (Q235 / Q345)
- Surface Treatment Hot-Dip Galvanized
- Lift Height Integration 2.0 Mtr. (6.6 Ft.)
- Supported Bay Lengths (Metric) 0.73m | 1.09m | 1.57m | 2.07m | 2.57m | 3.07m
- Weight Range (Metric) 7.34 Kg up to 11.23 Kg
- Weight Range (Imperial) 16.2 Lbs up to 24.8 Lbs
- Connection Mechanism Swivel Brace End with Captive Wedge Pin
- Structural Function Diagonal Lateral Support / Anti-Sway
- Origin India
Product Description
In high-elevation industrial scaffolding, vertical and horizontal load-bearing capacities are only half the equation. The Ringlock brace solves the critical engineering challenge of lateral movement. Acting as the diagonal backbone of the scaffold bay, these braces transfer horizontal forces safely down to the foundation. Without precise diagonal bracing, towering structures are vulnerable to racking, twisting, and catastrophic fatigue under severe weather or heavy worksite vibrations.
Precision Configurations for Every Bay Length
Efficiency on the job site dictates profitability, which means materials must fit perfectly on the first try. As detailed in the standard specifications from image_f7732c.png, our Ringlock braces are manufactured to exact geometric tolerances designed for a standard 2.0 Mtr. (6.6 Feet) vertical lift.
For tight access areas, we provide specialized braces for 0.73 Mtr. (7.34 Kg) and 1.09 Mtr. (7.63 Kg) bay lengths. Standard scaffolding runs are supported by our 1.57 Mtr. (8.31 Kg) and 2.07 Mtr. (9.70 Kg) models. For massive industrial spans, our highly reinforced 2.57 Mtr. (10.20 Kg) and 3.07 Mtr. (11.23 Kg) diagonal braces lock the entire bay securely in place. This comprehensive size matrix ensures engineers can perfectly calculate structural loads and lateral support without any guesswork.
Frictionless Installation and Unrelenting Durability

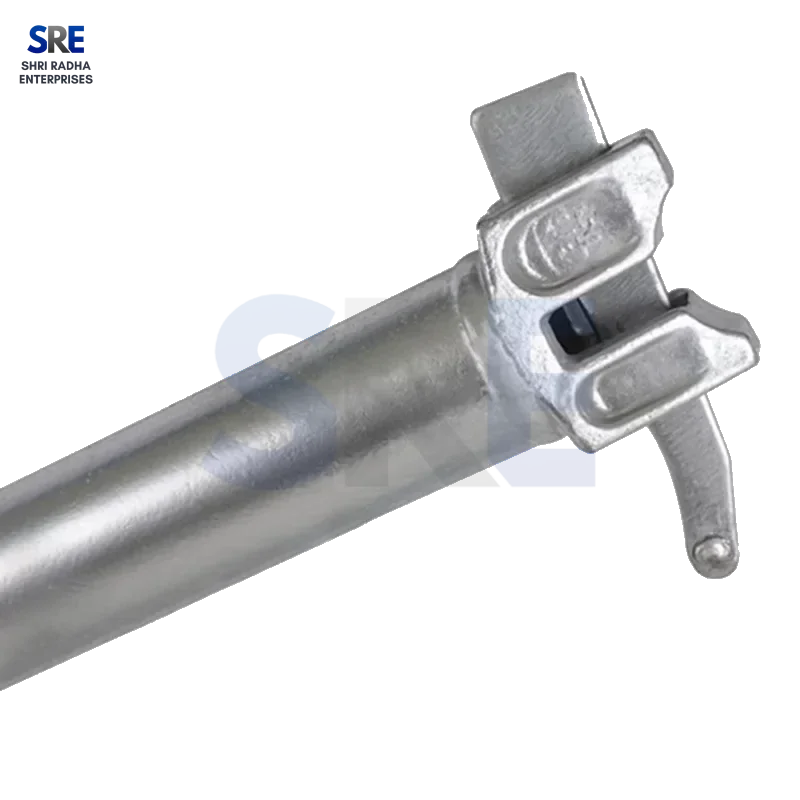

Equipped with precision-machined swivel brace ends and captive wedge pins, these braces integrate flawlessly with vertical rosettes. Scaffolding crews can instantly plumb and square the structure with a single hammer strike, drastically reducing erection times. Furthermore, every brace undergoes a comprehensive hot-dip galvanization process to combat corrosive coastal moisture and chemical weathering. This bonded zinc shield prevents internal and external rust, extending the component's lifecycle and delivering the highest possible ROI for your rental fleet.
| Feature | Specification |
| Material Grade | High-Yield Structural Steel (Q235 / Q345) |
| Surface Treatment | Hot-Dip Galvanized |
| Lift Height Integration | 2.0 Mtr. (6.6 Ft.) |
| Supported Bay Lengths (Metric) | 0.73m | 1.09m | 1.57m | 2.07m | 2.57m | 3.07m |
| Weight Range (Metric) | 7.34 Kg up to 11.23 Kg |
| Weight Range (Imperial) | 16.2 Lbs up to 24.8 Lbs |
| Connection Mechanism | Swivel Brace End with Captive Wedge Pin |
| Structural Function | Diagonal Lateral Support / Anti-Sway |
| System Compatibility | Ringlock Modular Systems |
Application & Additional Information
Engineered to eliminate structural racking and provide absolute lateral stability, our heavy-duty Ringlock brace is a critical diagonal reinforcement for modular scaffolding systems. Manufactured from high-yield structural steel with a premium hot-dip galvanized finish, these braces are configured for a standard 2.0 Mtr. lift height across six precise bay lengths—ranging from the compact 0.73 Mtr. model to the expansive 3.07 Mtr. extension. By perfectly squaring your scaffolding bays, our Ringlock braces prevent dangerous sway under high dynamic loads on complex industrial sites.
