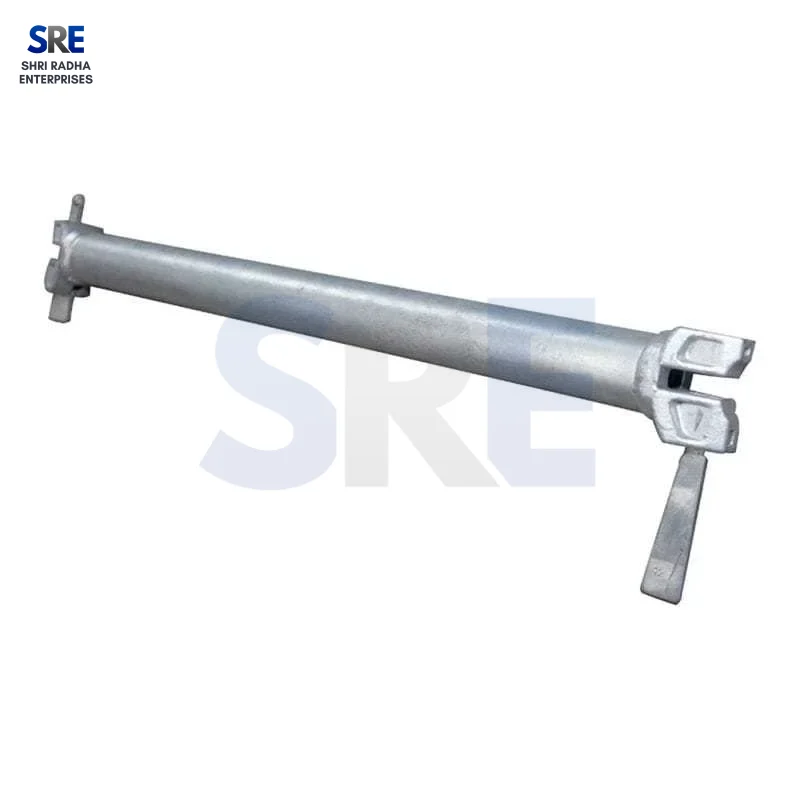

Ringlock Ledger
Technical Specifications
- System Compatibility Standard Ringlock Modular Systems
- Material Grade High-Yield Structural Steel (Q235 / Q345)
- Surface Treatment Hot-Dip Galvanized
- Available Lengths (Metric) 0.73m | 1.09m | 1.57m | 2.07m | 2.57m | 3.07m
- Available Lengths (Imperial) 2.4 Ft | 3.6 Ft | 5.2 Ft | 6.8 Ft | 8.4 Ft | 10.1 Ft
- Weight Range (Metric) 3.20 Kg up to 12.25 Kg
- Weight Range (Imperial) 7.1 Lbs up to 27.0 Lbs
- Tube Outer Diameter 48.3 mm
- Connection Mechanism Cast Ledger End with Captive Wedge Pin
- Origin India
Product Description
In industrial construction, horizontal load distribution dictates the overall capacity of the working platform. To fully leverage the safety and speed of a Ringlock modular design, the horizontal ledgers must function as an unyielding structural backbone. Seamlessly connecting vertical standards to form a rigid grid, these components support heavy scaffolding boards, work crews, and raw materials without structural deflection under immense dynamic loads.
Engineered Configurations for Every Ringlock Bay
B2B procurement teams demand exact specifications to calculate bay configurations and transport logistics. As detailed in the dimensions from image_ed6b43.png, our ledgers are manufactured across six distinct sizes to accommodate any site requirement and seamlessly integrate into your existing Ringlock inventory.
For confined industrial spaces or narrow access towers, the 0.73 Mtr. (3.20 Kg) and 1.09 Mtr. (4.45 Kg) ledgers offer highly maneuverable, rigid support. For standard facade and masonry runs, the 1.57 Mtr. (6.30 Kg) and 2.07 Mtr. (8.15 Kg) models provide the perfect balance of span and high load capacity. For expansive industrial staging, our maximum-reach 2.57 Mtr. (10.25 Kg) and 3.07 Mtr. (12.25 Kg) ledgers deliver massive bay widths while maintaining the unmatched stability of the Ringlock design.
Frictionless Erection and Maximum System ROI
Time is the most expensive variable on a construction site. These ledgers feature precision-cast ends equipped with captive wedge pins designed specifically for the Ringlock rosette. Scaffolding crews can lock the horizontal beams in place with a single hammer blow, achieving a flawless right-angle connection instantly. To ensure these components survive years of harsh chemical and weather exposure, each piece undergoes strict hot-dip galvanization. This thick zinc shield prevents rust, exponentially increasing the lifecycle of your fleet and driving maximum long-term ROI.
| Feature | Specification |
| System Compatibility | Standard Ringlock Modular Systems |
| Material Grade | High-Yield Structural Steel (Q235 / Q345) |
| Surface Treatment | Hot-Dip Galvanized |
| Available Lengths (Metric) | 0.73m | 1.09m | 1.57m | 2.07m | 2.57m | 3.07m |
| Available Lengths (Imperial) | 2.4 Ft | 3.6 Ft | 5.2 Ft | 6.8 Ft | 8.4 Ft | 10.1 Ft |
| Weight Range (Metric) | 3.20 Kg up to 12.25 Kg |
| Weight Range (Imperial) | 7.1 Lbs up to 27.0 Lbs |
| Tube Outer Diameter | 48.3 mm |
| Connection Mechanism | Cast Ledger End with Captive Wedge Pin |
| Compliance Standards | EN 12810 / BS 1139 |
Application & Additional Information
As the core horizontal load-bearing component of any modular build, our heavy-duty Ringlock ledger ensures absolute structural integrity for your scaffolding bays. Manufactured from high-yield structural steel and finished with a robust hot-dip galvanized coating, these ledgers connect directly to vertical rosettes via precision-engineered captive wedge pins. Available in six exact lengths ranging from a compact 0.73 Mtr. (2.4 Feet) to a wide-span 3.07 Mtr. (10.1 Feet), our ledgers maximize the efficiency and safety of your entire Ringlock system.
